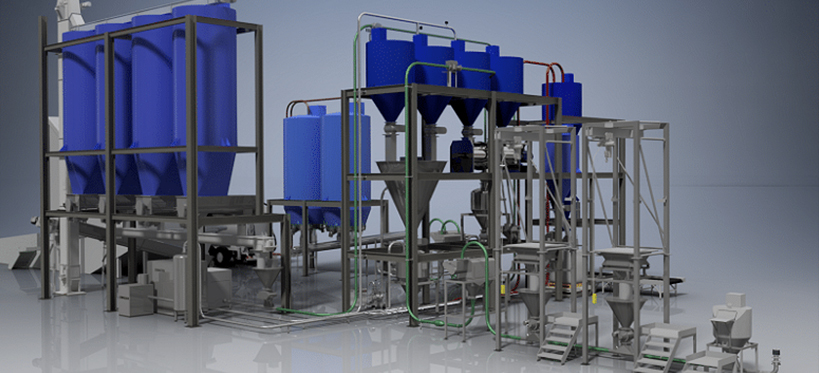

Pneumatic Conveying System

We are expert in robotize your procedure with pneumatic conveying on all kind of powder and granule materials a wide assortment of industry-particular applications in utilizing vacuum and pressure conveying on for putting away, bolstering, mixing, scaling, filtering, drying and dust collection systems.

we are proficient to offer environment cordial arrangements in house material taking care of in industries. Our experience has given us information in passing on distinctive sort of materials furthermore planning custom manufactured Equipments.

we are specializes in pneumatic conveying of dry bulk solids for the processing industries.

Product Description

System Types : Positive pressure systems

Positive pressure dilutes stage pneumatic conveying systems are commonly utilized to pass on mass materials from a single source to one or numerous destinations, over longer separations and with a more prominent limit than conceivable utilizing vacuum frameworks.

These systems use a positive removal blower with single or numerous downstream material section focuses, each of which meters product into conveying lines by method for a rotary airlock valve that keeps up the pressure differential between the encompassing air and that of the conveying line. Material and air blown through the line exit at single or different use focuses where they are isolated by method for a channel collector or cyclone separator, or encouraged specifically into procedure vessels that are vented to downstream dust collection devices.

Pressure systems offer higher proficiency than vacuum systems, can pass on over longer distances, and can blow straightforwardly into procedure and storage vessels without the use of a rotary airlock valve.

Vacuum systems

Vacuum dilutes stage pneumatic conveying systems are generally employed for transporting material from different sources, for example, storage vessels, process equipment, trucks and railcars, to individual or numerous destinations. Not at all like positive pressure systems, vacuum systems permit simple get of materials from open containers using wands, and don't impart heat to the material. Since vacuum systems offer superior leak containment, they are frequently determined on the premise of cleanliness, especially when handling hazardous materials.

Negative pressure is made by a positive displacement vacuum pump situated at the downstream end of the system. A material commonly enters the system via upstream rotary airlock valves, handheld get wands, and non-move through/ flood-feed pick-up adapters, and ways out the framework through filter receivers or cyclone separators that differentiate the material from the conveying air straightforwardly above process equipment, surge hoppers, storage vessels or other release points.

In addition, vacuum conveying is suited to direct sustaining of blenders, reactors and other encased procedure vessels that are put under vacuum by a line terminating at a downstream bag house or other dust collection device, eliminating the requirement for individual receivers or cyclone over every discharge point.
